Setting Tool

PGM-FI Setting Tool for CRF450R/CRF450RX(2017 model)

The CRF450R PGM-FI system has built-in correction for changes in air temperature and barometric pressure. The HRC PGM-FI Setting Tool allows the riders even more control over fuel delivery and ignition timing by parameters of throttle opening and engine speed, to suit the riders’ specific needs.

Programming the PGM-FI is simple, requiring just a laptop computer. Changes to the fuel and ignition timing settings are entered on the laptop and then downloaded to the PGM-FI unit by serial USB interface.

In the 2017 model, an engine mode selection button is adopted and it can change to three modes (standard and smooth , aggressive power modes), the same as with the 2015/2016 models.

If HRC PGM-FI setting tool is used, the setting in the 2 modes (smooth and aggressive) can be changed.

New software: The software for the setting tool becomes Windows 10 compatible (Ver1.3), so that it is applicable to other HRC bikes. You are able to set the kind of bike when you first connect to the ECU. The method and strategy are as same as before. For serial USB interface, 2010 and later models can be used. 2009 CRF450R USB interface can be used by exchanging the sub-cord to 2010 or later model.

Manual of Setting Tool serves as CD-ROM edited according to the model. The manual of Setting Tool for the 2015 model can also be used for the 2017 model.

Parts List

PARTS NUMBER DESCRIPTION REMARKS

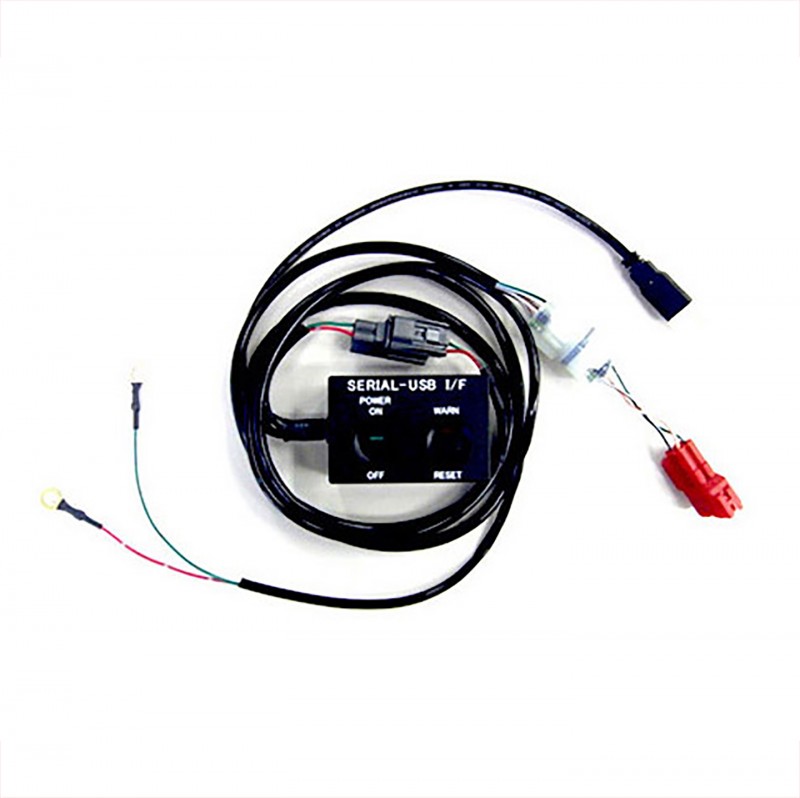

38880-N1C-770 UNIT ASSY,
SERIAL-USB I/F
2010~2017 Model
CRF/NSF250R use is possible
38772-NX7-040 CD-ROM, HRC DATA SETTING TOOL Setting Tool Software CD
Ver1.1(for WinXP~10)
It cannot be used for former 2012 Model of CRF450R/CRF250R
38773-N1C-C00 CD-ROM, DATA SETTING TOOL MANUAL Manual CD for 2015 Model CRF450R
(Triple Map applicable)
This manual can be used for 2017 model

Setting contents are same as before. There is not compatibility of MAP in each model.
Different year model’s setting Maps cannot be used.
2017 CRF450R’s setting Maps cannot be used for 2017 CRF450RX.


CRF PGM-FI SETTING TOOL Compatibility list

CD-ROM 38772-NX7-040
(Ver.1.3.0.0)
38772-NX7-030
(Ver.1.2.0.0)
38772-NX7-020
(Ver.1.1.0.0)
38772-NX7-010
(Ver.1.0.1.0)
38771-N1C-770 38771-N1C-670
Correspondence OS WinXP~10 WinXP~10 WinXP~8.1 WinXP~7 Win2000~VISTA Win98SE~VISTA
CRF450R 2009 Model  × × × ×
Selectable year model. Select ’09 year model
2010-2012 Model  × × × ×
Selectable year model. Select ’10 year model
×
2013-2014 Model  ○ × ×
2015-2016 Model  ○ × ×
2017 Model  ○ × × × × ×
CRF450RX 2017 Model  ○ × × × × ×

System Requirement

  • Microsoft Windows compatible PC
  • OS :Windows XP 32bit (service pack 3 or later) /
    • Windows VISTA 32bit/64bit / Windows 7 32bit/64bit / Windows 8.1 32bit/64bit / Windows 10 32bit/64bit
    • Mac OSX(10.5.6 or higher, Windows VISTA 32bit/64bit / Windows 7 32bit/64bit / Windows 8.1 32bit/64bit running on Boot Camp Ver.2.1 or higher)
  • Each OS must use the latest available Service Pack update
  • Main memory : 128MB or more
  • Display : 1024 x 768 or higher resolution (recommended)
  • CD-ROM : CD-ROM drive is required (the product includes a CD-R)
  • Serial port : USB port is required (to communicate with ECM)


  • HRC racing motorcycles are made for competition use ONLY, and are NOT covered by warranty and NOT to be ridden on public roads.
  • All specifications are subject to change without notice.
  • Please consult your authorized Honda motorcycle dealers.
  • HRC products are not available in all countries. Please check with your local dealer on parts availability and ordering procedure.
