CBR1000RR-R
Select CBR1000RR-R year below to see compatible parts.
2024
Racing Kit Parts
The HRC Racing Kit is a race-only kit to enhance the performance of the CBR1000RR-R on race circuits, targeting a wide range of users. Racing kit parts compliant with regulations of each country are available.
The CBR1000RR-R can produce more powerful yet maneuverable performance than before when the exclusively designed HRC kit parts are mounted to the base motorcycle, which performs better thanks to installation of the two-motor TBW (throttle-by-wire) system. Furthermore, when the exhaust pipe with the RCV (Revolutionary Controlled Valve) is assembled, acceleration/deceleration during cornering can be controlled to deliver more engine power.
The advanced control system can bring various engine characteristics, so that riders of diverse levels can demonstrate competitive capabilities on their respective circuits.

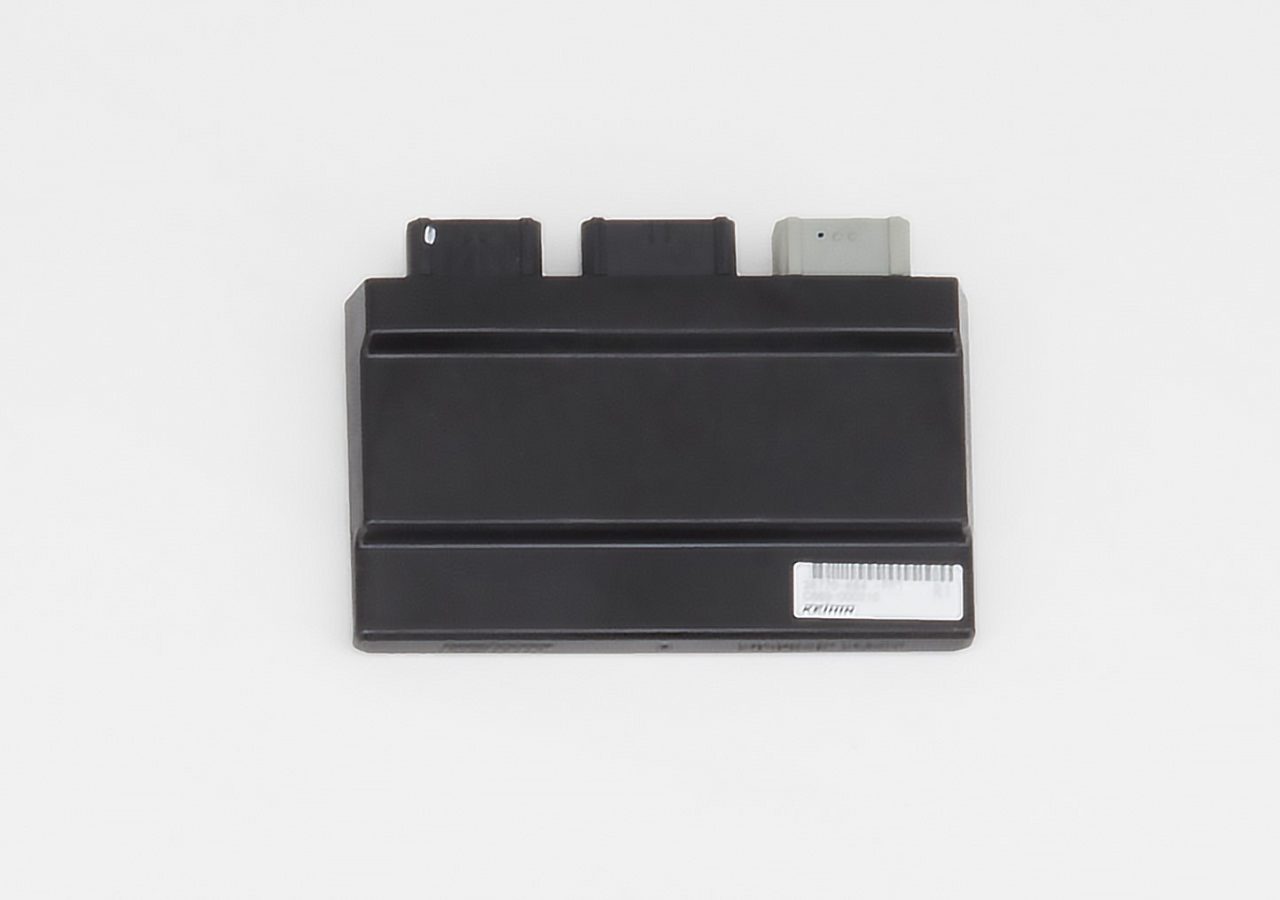

PGM FI UNIT
- While the racing control of the 2024YM racing PGM FI unit has been substantially upgraded, addition of new control allows to adjust machine settings finely to improve performance on the circuit significantly.
Data Setting Tools
Power characteristic map profile and opening settings have been redefined to further improve maneuverability for exiting corners. In conjunction with the TH Grip Adj, this feature allows modification of output characteristics in response to grip operations.
【HRC_DataSettingTool_v162.zip:122MB】
- September 2024 Version 162 Update: Kvaser V3 Compatible
The HRC Setting Tool manual is available for download from Motopub.
https://www.hondamotopub.com/HRCE

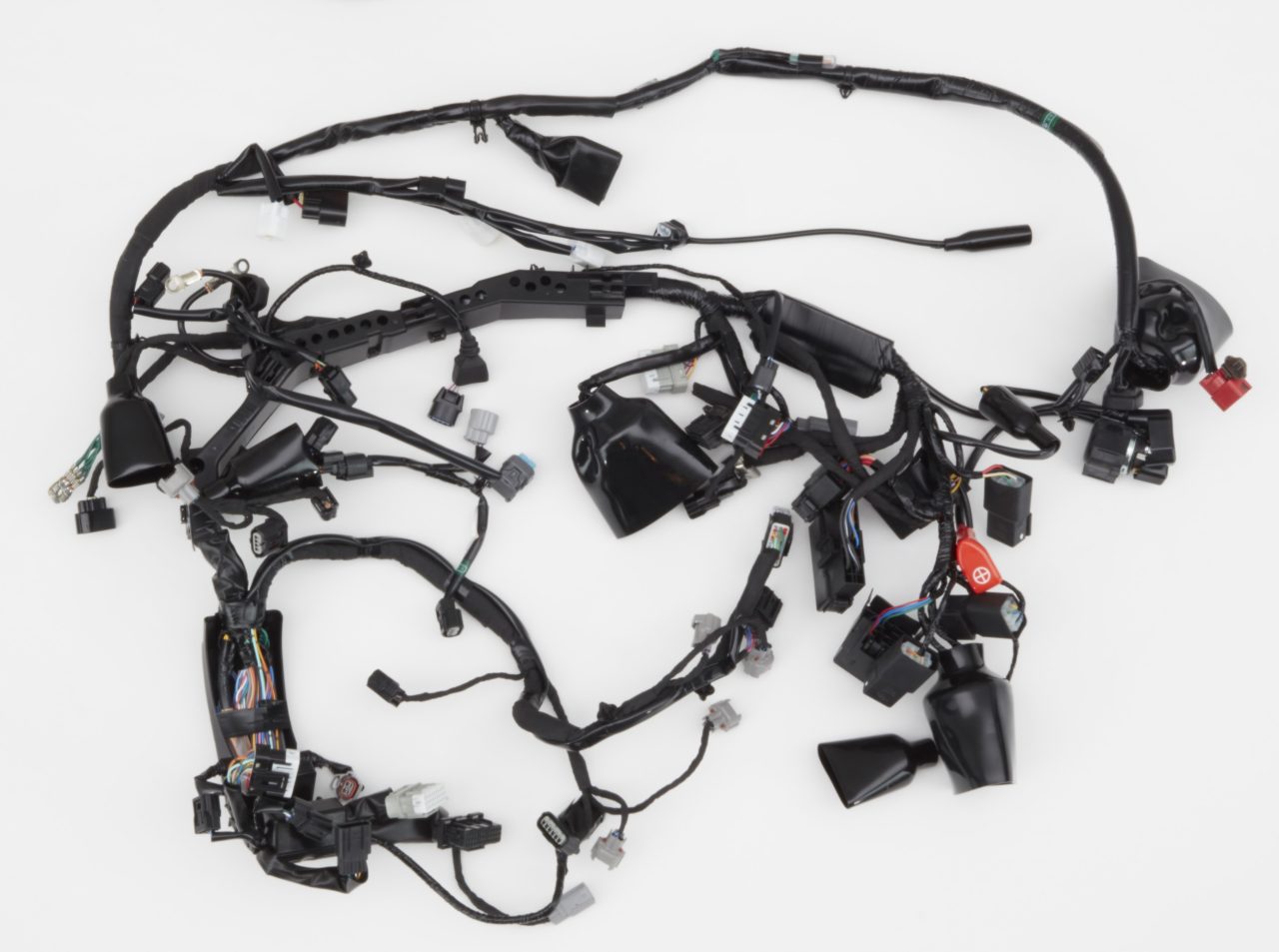

HARNESS
- The PGM FI of the race kit performance can be delivered when the race-only harness is installed.

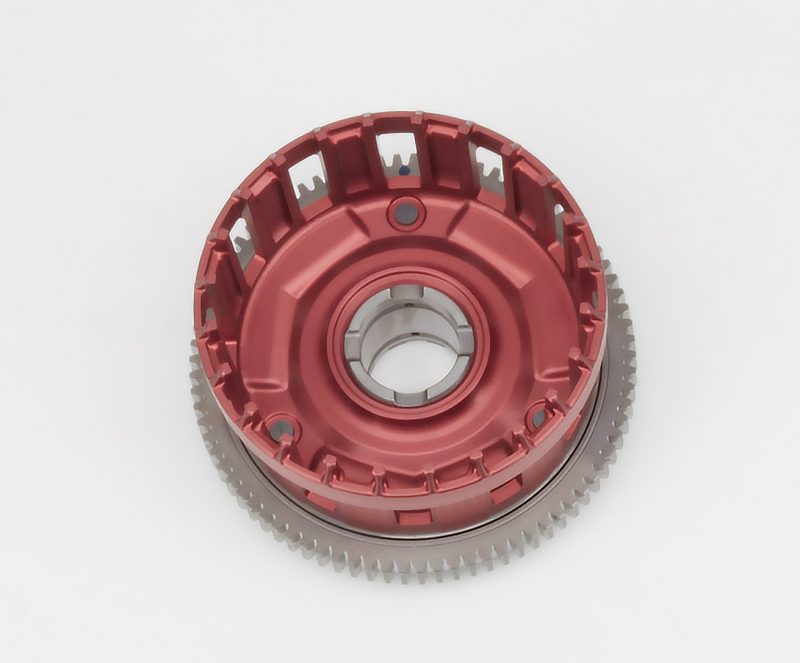

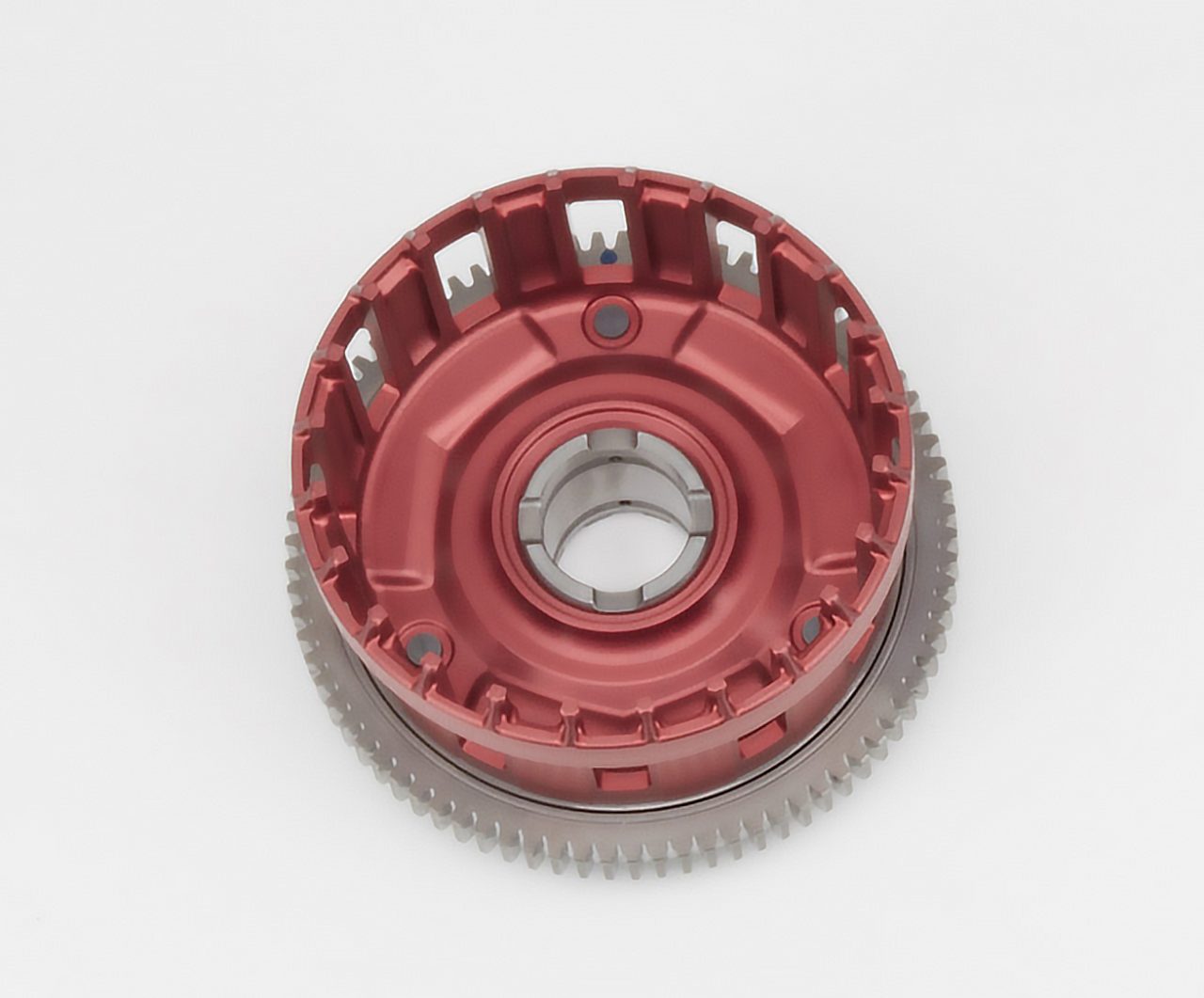

CLUTCH
- The side plate added between the damper spring and clutch outer has improved wear resistance significantly.
- Additional surface treatment (hard anodization in red) has improved wear resistance further.

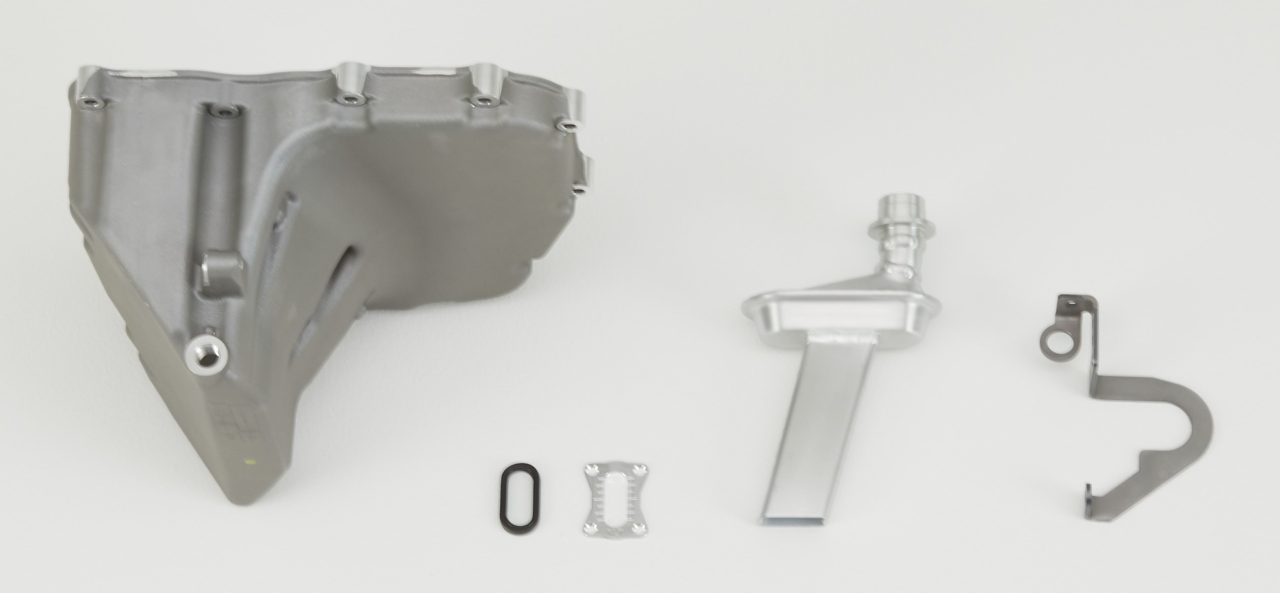

OIL PAN
- The oil pan has been designed deeper by 31 mm than one used to the street-legal motorcycle to improve toughness against aeration during racing.
TRANSMISSION
- Application of the close-ratio transmission, despite the street-legal design not being close-ratio, has improved gear engagement.
Additionally, the transmission is entirely machined for optimal geometry, reducing weight of the transmission set by 120 g.

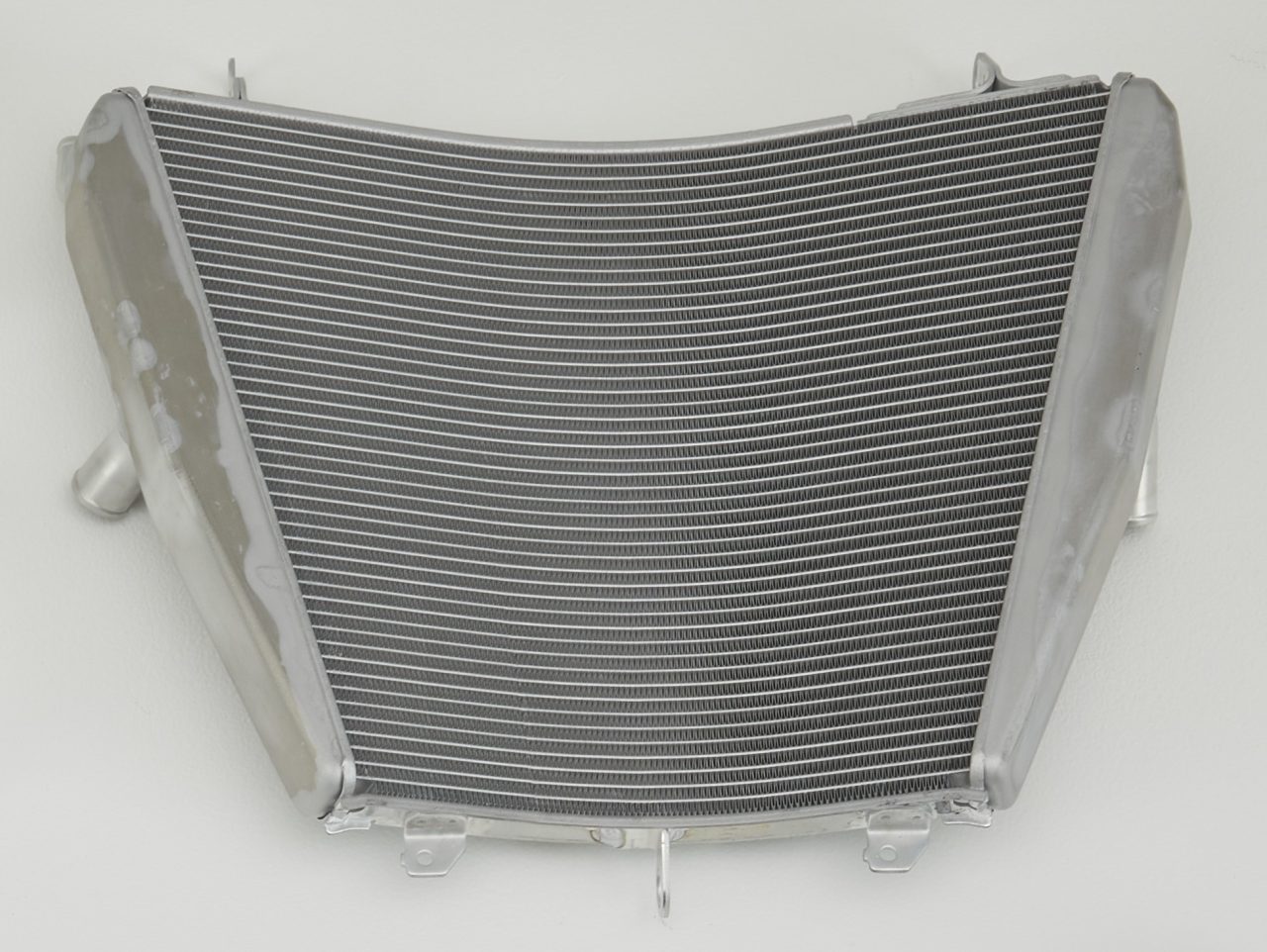

RADIATOR
- Installation of the race-only radiator improves cooling performance.
- Stays and painting unnecessary for the race motorcycle have been eliminated.
- The fin pitch of the radiator has been changed to improve cooling efficiency during high speed riding by 5%.
CHAIN ADJUSTER
- Installation of the race-only chain adjuster improves maintainability of rear wheel attachment/detachment.

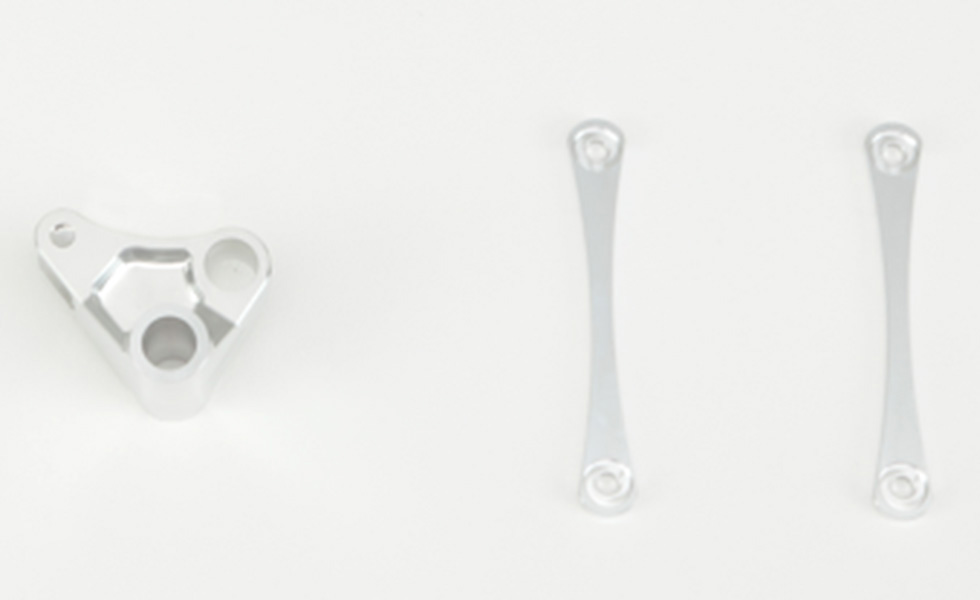

REAR CUSHON LINK
REAR CUSHON LINK

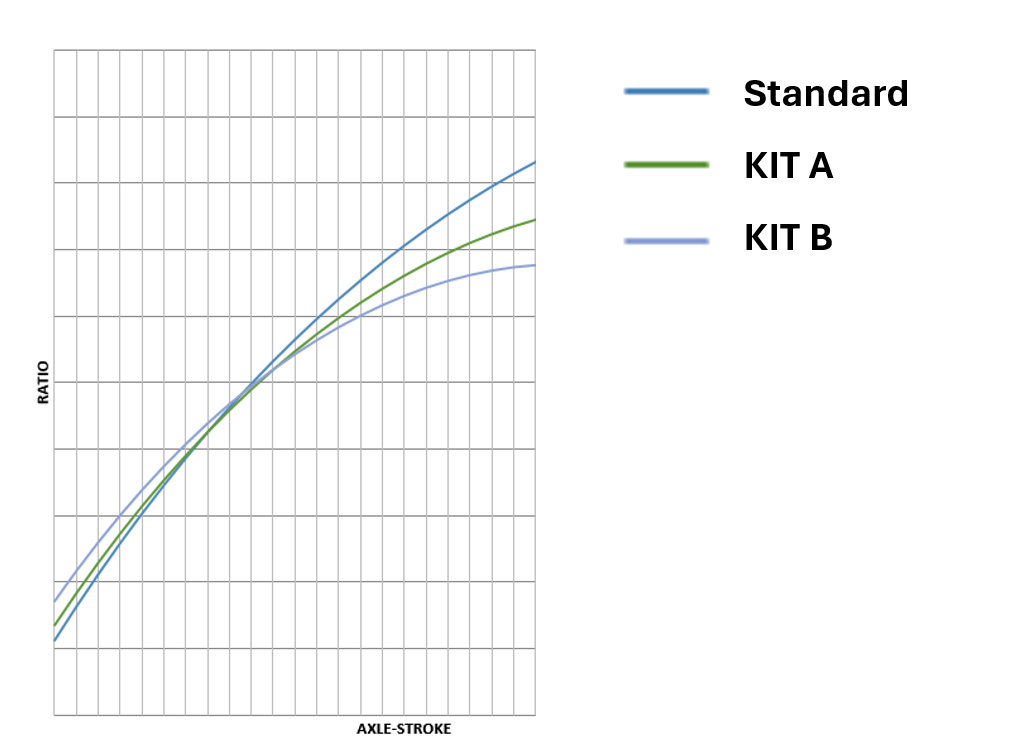

REAR CUSHON LINK Ratio
- The ratio curve has been defined appropriately for circuit riding compared to that of the street-legal design intended for pillion riding.
Two types of kits are available: Kit B with design intended for suspension operability throughout the entire stroke; and Kit A with intermediary design.
Engine Parts

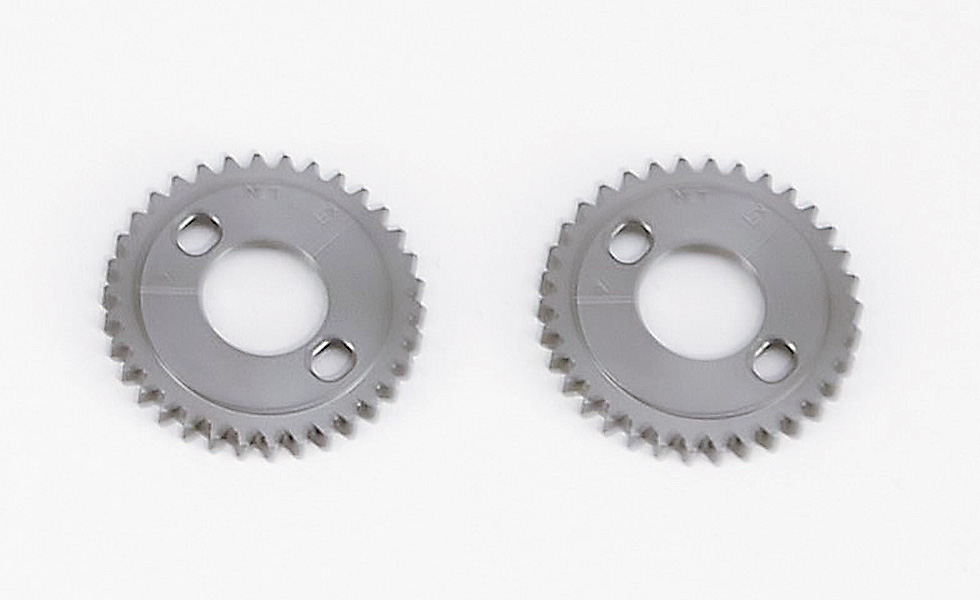

CAM SPROCKET
Spark Plug R0451J-10

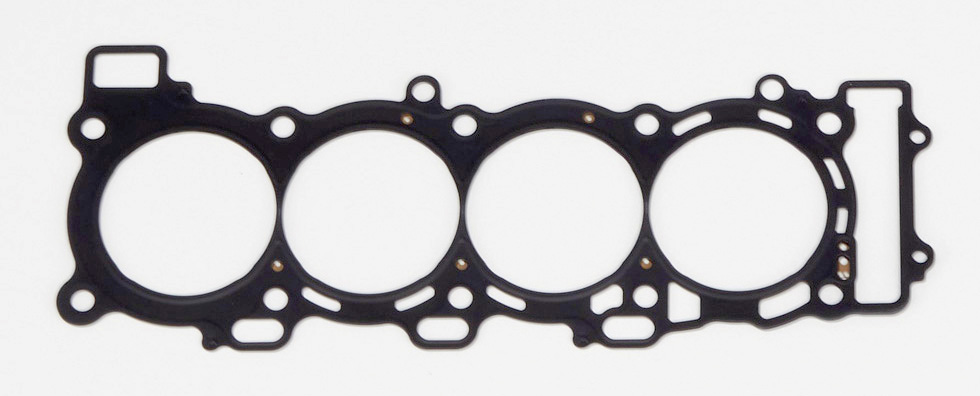

CYLINDER HEAD GASKET

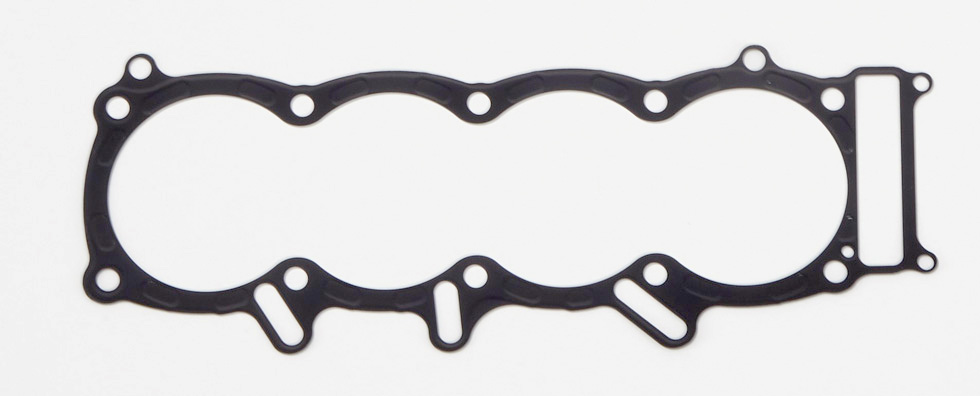

CYLINDER GASKET
Frame Parts

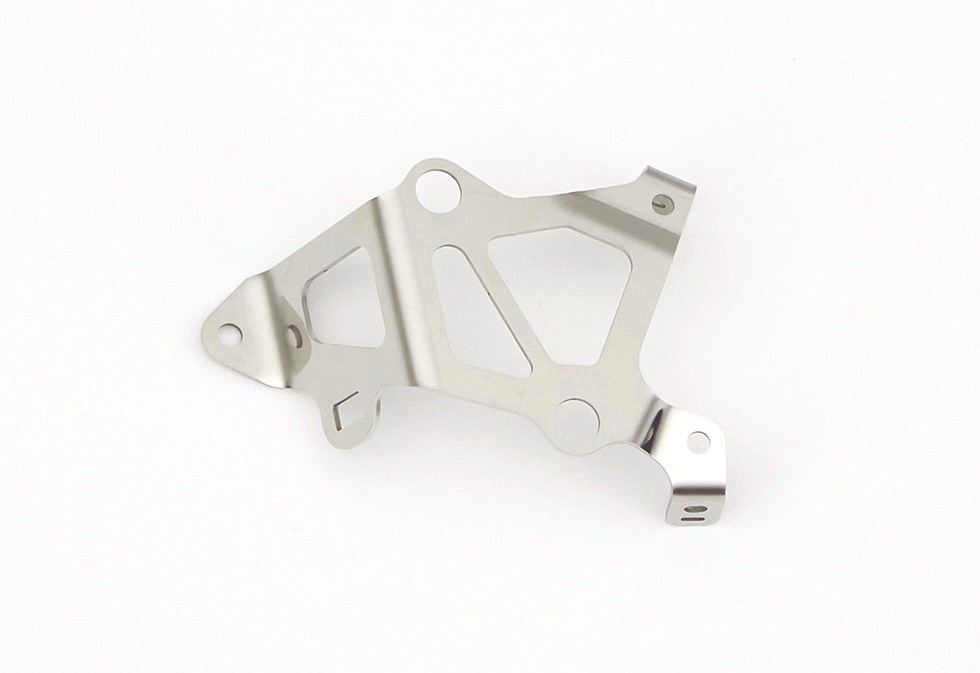

STAY

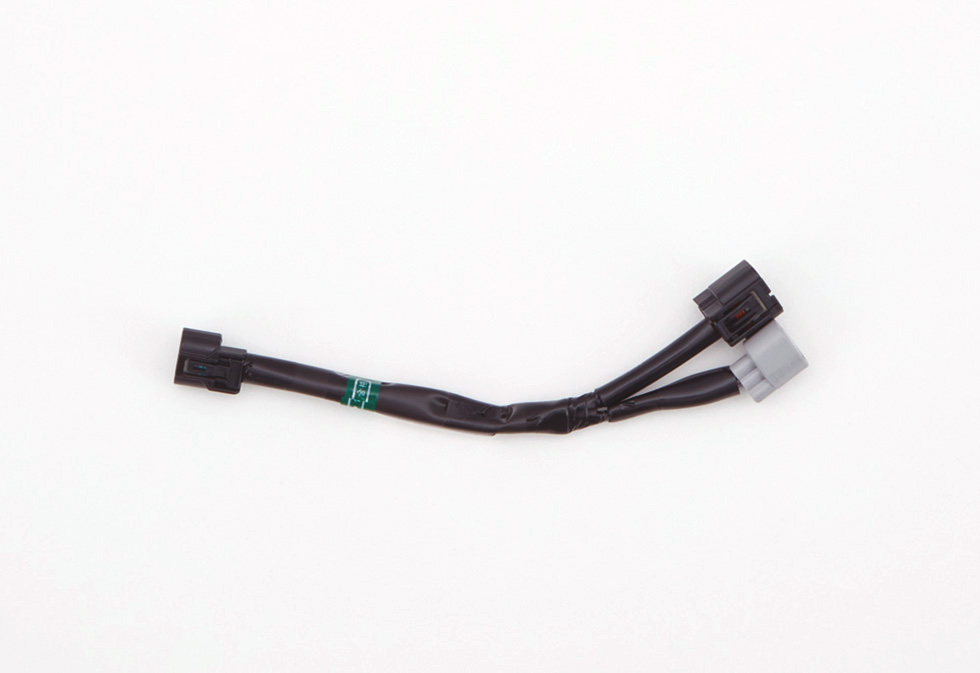

Engine SUB HARNESS
2020 Racing kit
Racing kit for CBR1000RR-R
The CBR1000RR-R racing kit is a race-only kit that complies with the stock regulations of each country and aims to allow a wide range of users to participate in races while maintain the high-level of the base bike.
* When participating in a race, please check the regulations of each race and change to the appropriate specifications before using.
Vehicles and parts incorporating this kit part are not covered by the warranty.
Main features of racing kit parts
ENG characteristics can be set in detail by electronic controls inherited from MotoGP
- Engine characteristic MAP
- Quick shifter (up, down)
- Engine brake MAP
- Fuel cut during deceleration
- Two patterns of fuel injection / ignition timing adjustment (assignment is possible for each gear)
- Traction control
- Traction control corresponding to sudden slides and loss of traction
- The injection ratio of the upper and lower injectors can be changed.
- Wheelie control using 6-axis gyro sensor
- Launch control with arbitrary rev cut settings
- Skid control MAP
others
- Pit lane vehicle speed
- Front and rear tire diameter input
- Final ratio input
- CAN logger compatible output
- Electronically controlled steering damper setting
- Optional 5ch external voltage input (example: front / rear suspension stroke, front / rear brake fluid pressure, air-fuel ratio A / F)
List of exclusive parts for Stock regulation
| Parts Number | Parts Name | QTY. | Note |
| 18291-NLT-000 | GASKET,EXH PIPE | 4 | |
| 19010-NLT-000 | RADIATOR COMP | 1 | |
| 19320-MFL-R11 | THERMOSTAT ASSY(62) | 1 | |

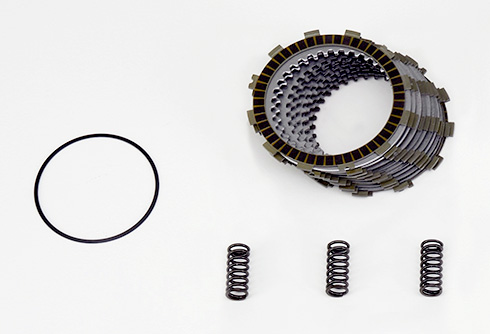

| 22210-NLT-000 | DISK SET,CLUTCH | 1 | |
| 22325-NLT-000 | SPRING,JUDDER | 1 | |
| 22401-NLT-000 | SPRING,CLUTCH_445N | 3 | |
| 31510-NLT-000 | STAY,REG | 1 | |
| 32100-NLT-000 | HARNESS WIRE | 1 | |
| 32102-NLT-000 | SUB HARNESS,ENG SENSOR | 1 | |
| 37976-NLS-000 | SET PLATE A | 1 | Needs replacement when using normal APS |
| 38770-NLT-600 | UNIT COMP,PGM-FI/IGN | 1 | |
| 38900-NLT-000 | SUB HARNESS,D-SUB CONN(CAN) | 1 | BIKE-PC communication cable |
| 50260-NLT-000 | STAY,IMU(KIT) | 1 | |
| 50261-NLT-000 | COVER,IMU(KIT) | 1 | |
| 50262-NLT-000 | COLLAR,IMU(KIT) | 2 | |
| 90087-NLT-000 | CAP,30MM | 1 | For timing hole wiring |
Optional parts
| Parts Number | Parts Name | QTY. | Note |
| 32110-NLT-000 | SUB HARNESS TRANSPONDER､X2 | 1 | For MYLAPS X2 |
| 35130-NLT-000 | SW ASSY,ENG STOP | 1 | For NLT APS |
| 37970-NLT-003 | SENSOR ASSY.,GRIP AP | 1 | Texture improvement
(open angle is the same as STD) |
| 38200-NLS-700 | SENSOR ASSY,SHIFT FORCE | 1 | Load cell sensor |
| 39820-NLS-700 | UNIT ASSY,S/F SENSOR AMP | 1 | Amplifier used as a set with a load cell sensor |
Set up manual & Tools
| Parts Number | Parts Name | QTY. | Note |
| 00X32-NLT-600 | SET UP MANUAL PARTS LIST | 1 | |
| 38772-NLT-D00 | CD-ROM, HRC DATA SETTING TOOL | 1 | |
| 38773-NLT-000 | CD-ROM,HRC DATA SETTING TOOL MANUAL | 1 |
* This is a list of typical parts. Please refer to SET UP MANUAL PARTS LIST for details.
- HRC racing motorcycles are made for competition use ONLY, and are NOT covered by warranty and NOT to be ridden on public roads.
- All specifications are subject to change without notice.
- Please consult your authorized Honda motorcycle dealers.
- HRC products are not available in all countries. Please check with your local dealer on parts availability and ordering procedure.
