CRF250R
Select CRF250R year below to see compatible parts.
Setting Tool
PGM-FI Setting Tool for CRF250R (2015 model)
The CRF250R PGM-FI system has built-in correction for changes in air temperature and barometric pressure. The HRC PGM-FI Setting Tool allows the rider even more control over fuel delivery and ignition timing, to suit the riders’ specific needs.
Programming the PGM-FI is simple, requiring just a laptop computer. Changes to the fuel and timing settings are entered on the laptop and then downloaded to the PGM-FI unit by serial USB interface.
From 2010 model, the PGM-FI tuning connector is located behind radiator shroud for easier access.
Parts List
PARTS NUMBER | DESCRIPTION | REMARKS |
38771-N1D-670 | CD-ROM,PGM-FI/IGN | CRF250R(2010 Model)CD-ROM |

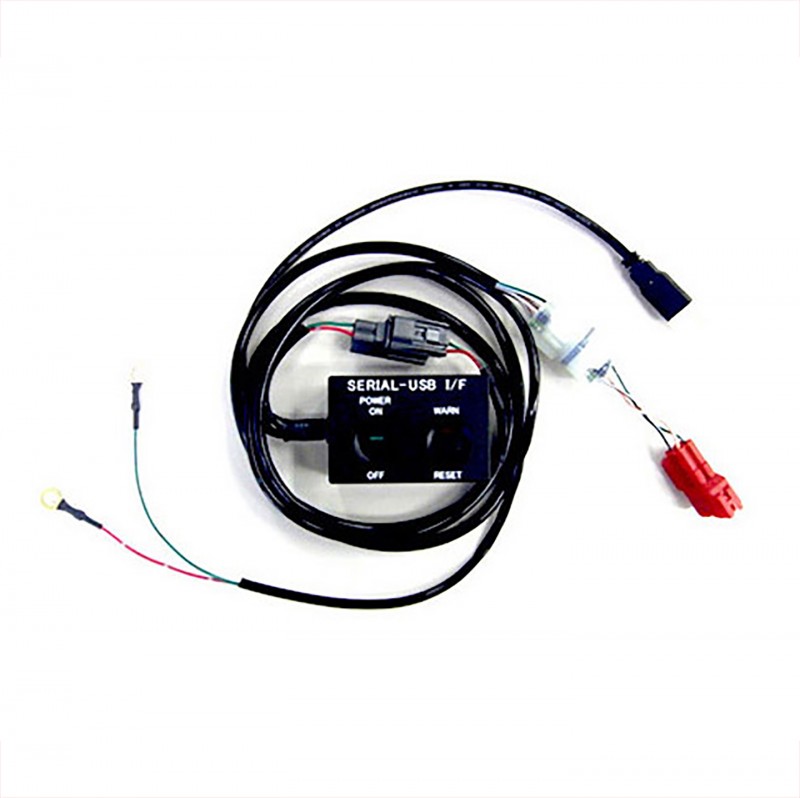

38880-N1C-770 | UNIT ASSY,SERIAL-USB I/F | CRF450R/250R I/F UNIT(with SubCord for 2010 Model) |
PGM-FI setting sample MAP (For 2010-2012 model)
We have prepared setting sample MAP with different setting for each condition. Download and use it for setting your bike. (Setting contents are as same as before. Former sample MAPs can not be used since the setting tool is new.)
For beginners/Muddy spec
Setting to give smooth power character and improved traction.
The delayed ignition timing gives mild response. It gives better controllability in muddy conditions by setting at low to middle throttle and low to middle speed.
Response spec
Setting to give better response to throttle control.
The advanced ignition timing gives better response. By giving richer fuel setting to the area where the ignition timing is advanced, it will give more torque and power feeling.
Torque spec
Setting to give better torque feeling at low to middle speed and feeling to push the bike forward.
Torque feeling is achieved by setting richer fuel at low to middle speed area and response is achieved by advancing the ignition timing.
Sample Map Download (About 2KB ZIP)
PARTS COMPATIBILITY LIST for CRF PGM-FI SETTING TOOL
CRF250R | I/F for 2009 38880-N1C-670 |
CD-ROM for CRF250R 2010 38771-N1D-670 |
I/F for 2010 38880-N1C-770 |
---|---|---|---|
2010-2012model | You can use it by replacing to sub cord (38882-N1C-770) |
- HRC racing motorcycles are made for competition use ONLY, and are NOT covered by warranty and NOT to be ridden on public roads.
- All specifications are subject to change without notice.
- Please consult your authorized Honda motorcycle dealers.
- HRC products are not available in all countries. Please check with your local dealer on parts availability and ordering procedure.
