NSF100
Riding alone is fun but riding with friends can be better. HRC has introduced the new NSF100. A base machine made for full enjoyment of racing in the 4 stroke small bike class.
Please consult your authorised Honda motorcycle dealer.

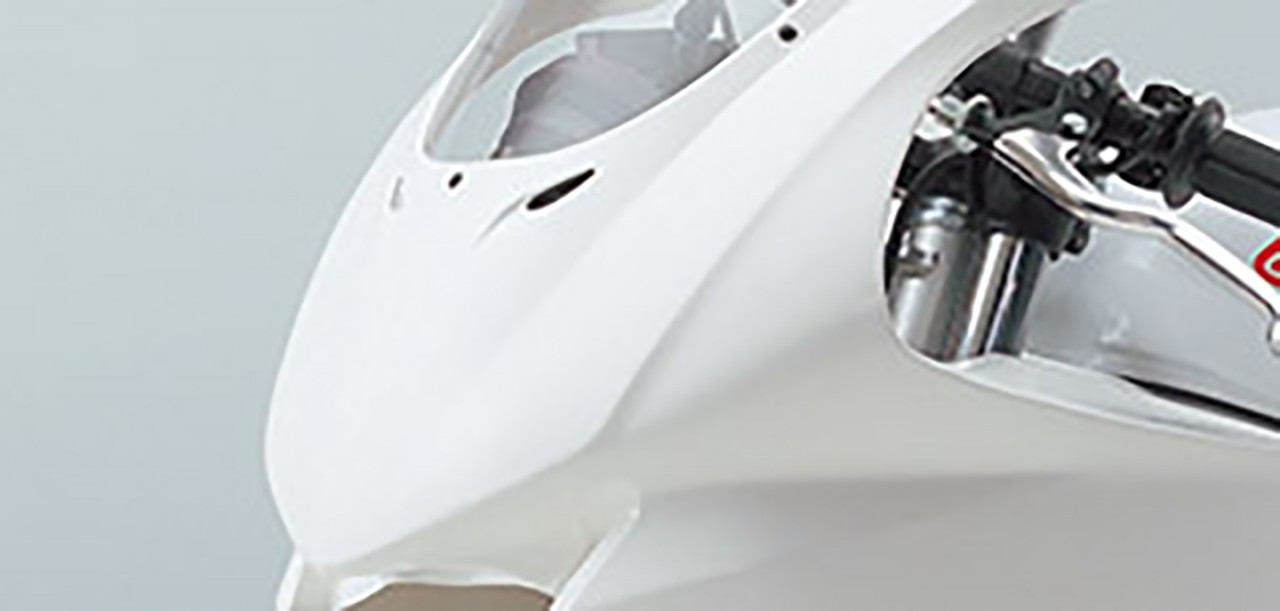

Fairing
FRP made Fairing has been adopted with the design which follow in the footsteps of RC211V.

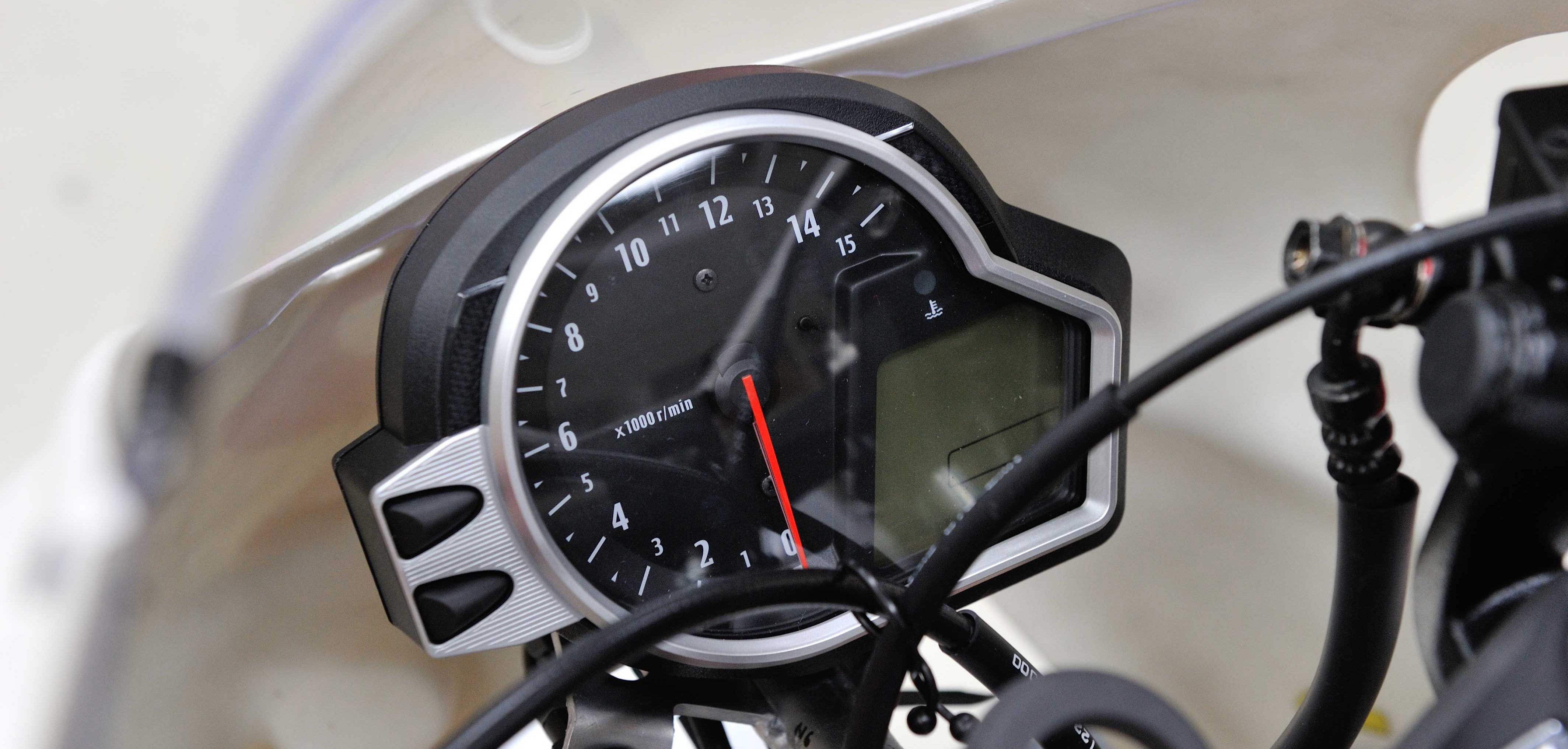

Tachometer
Engine revolution indicated linearly by adopting electric tachometer used in RS125R/250R.

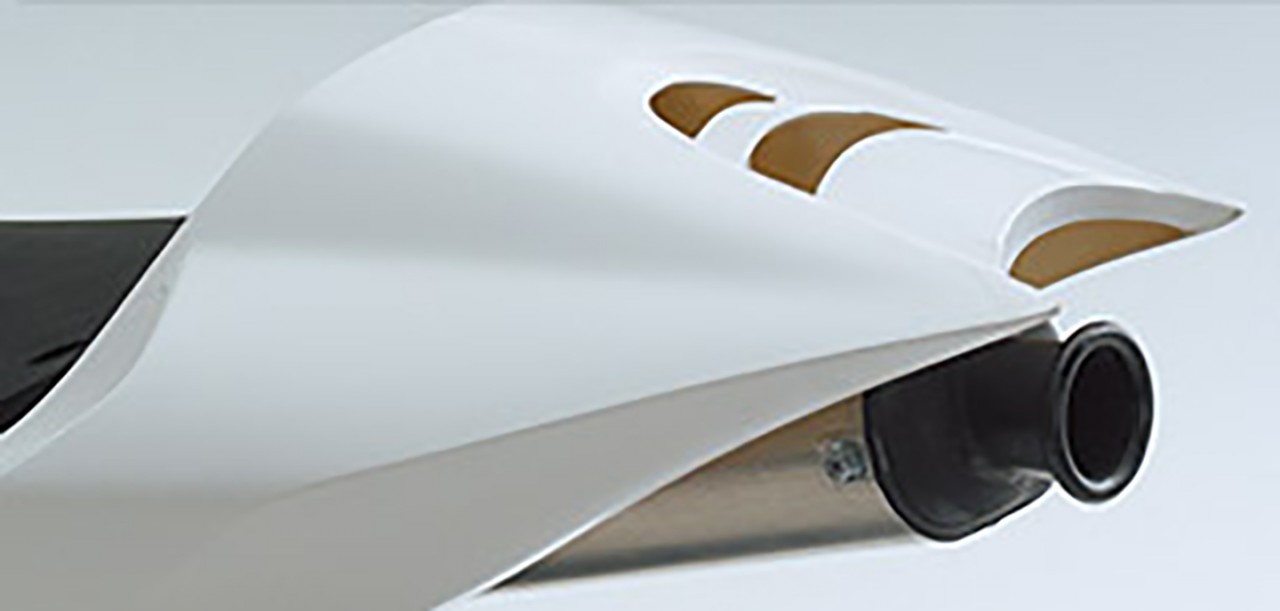

Muffler
RC211V imaged Center fixed Up type muffler has been adopted.

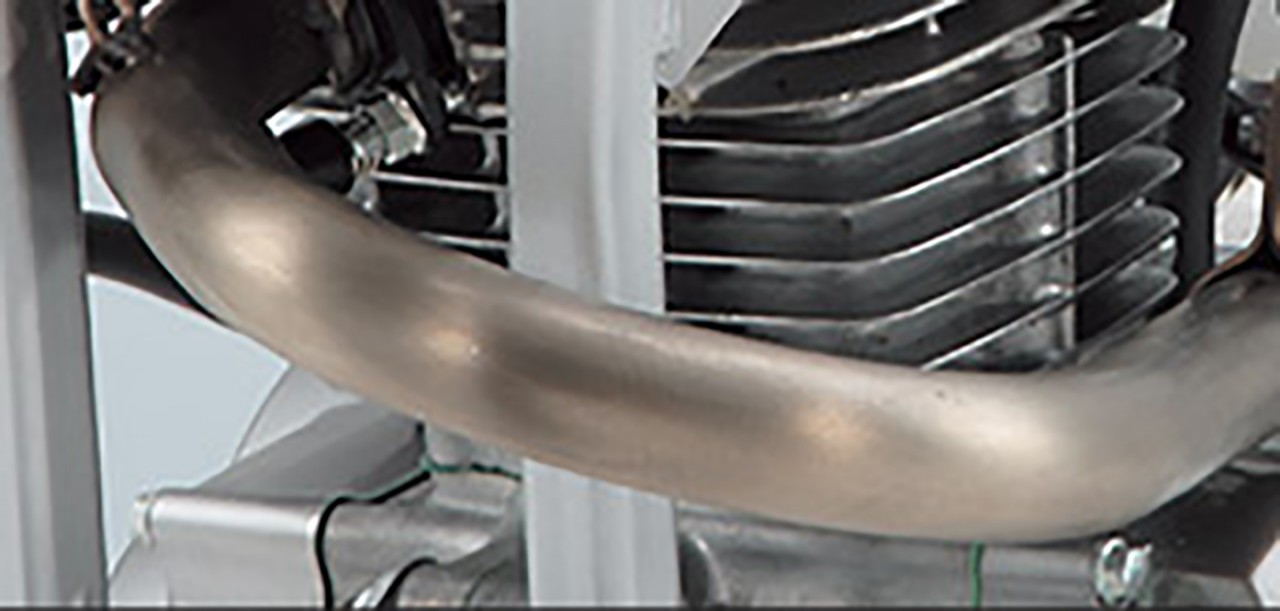

Exhaust Pipe
Stainless steel contributes to weight saving.

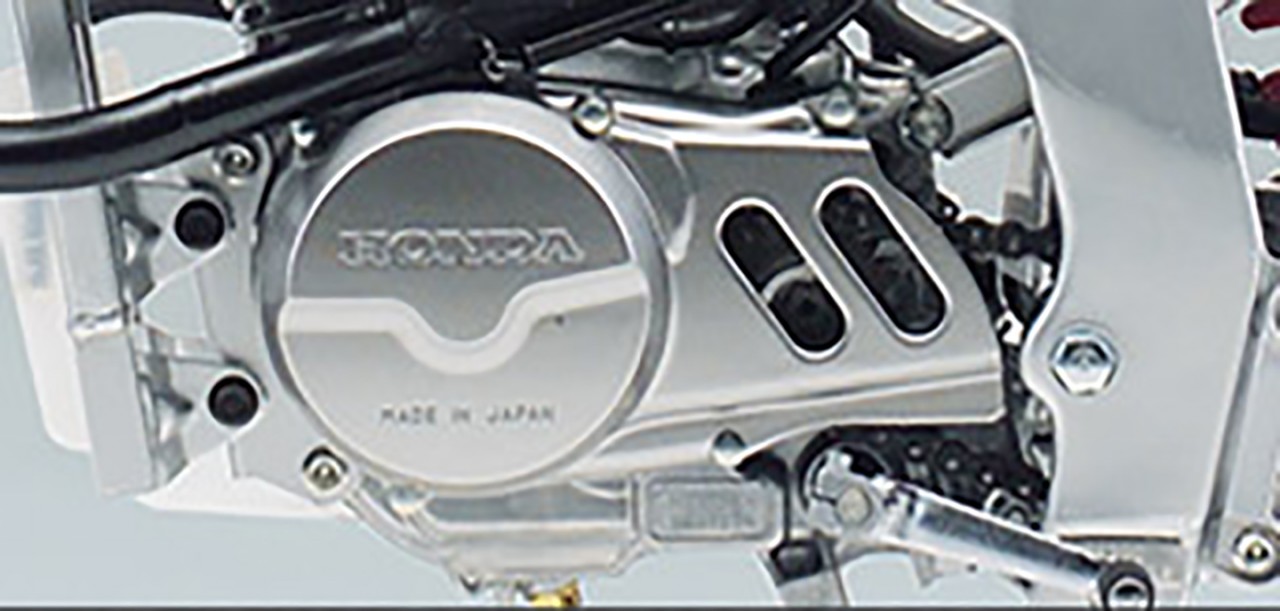

Engine
Equipped with Air-cooled 4-stroke single cylinder engine.

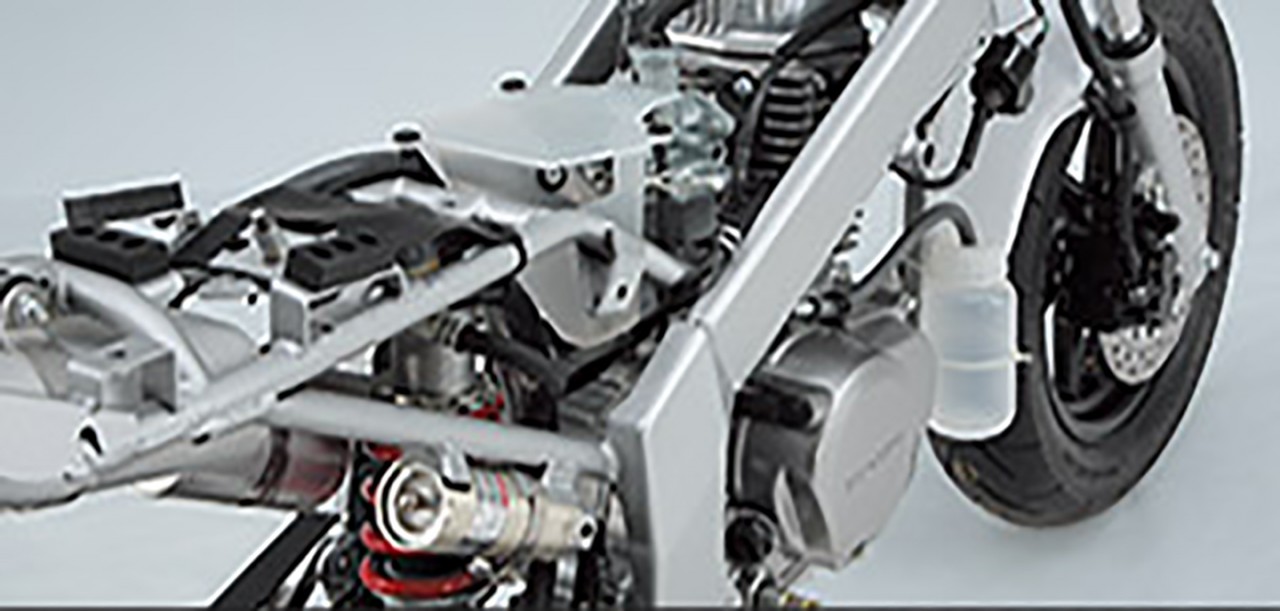

Chassis
The frame body which a reinforcement plate was added to has the rigidity for a lateral direction and the torsion direction. Light handling and stable operability are realized by making the center of gravity position of the body adequate.
Specifications
| MODEL | NSF100 |
| TYPE | HR01 |
| LENGTH × WIDTH × HEIGHT | 1956 × 595 × 911mm |
| WHEELBASE | 1074mm |
| GROUND CLEARANCE | 123mm |
| SEAT HEIGHT | 681mm |
| CASTERANGLE | 23° 36′ |
| DRY WEIGHT | 73.6kg |
| ENGINE TYPE | AIR-COOLED 4-STROKE SINGLE CYLINDER |
| DISPLACEMENT | 99.2cc(cm3) |
| BORE AND STROKE | 53 × 45mm |
| MAX. POWER | 6.2kw/9500rpm, 8.4PS/9500rpm |
| MAX. TORQUE | 7.4N•m/7000rpm, 0.75kgf-m/7000rpm |
| CARBURETOR | 22mm |
| STARTER | PUSH |
| IGNITION | CDI |
| TRANSMISSION | 5-SPEED |
| BRAKE | FR : SINGLE DISK |
| RR : SINGLE DISK | |
| TIRES | FR : 100/90-12 48J |
| RR : 120/80-12 54J | |
| SUSPENSION | FR : TELESCOPIC |
| RR : SWINGARM |
- HRC racing motorcycles are made for competition use ONLY, and are NOT covered by warranty and NOT to be ridden on public roads.
- All specifications are subject to change without notice.
- Please consult your authorized Honda motorcycle dealers.
- HRC products are not available in all countries. Please check with your local dealer on parts availability and ordering procedure.
